BI 310 v2 TREK (Pallet tracking)
The BI 310 v2 Cicada is a low-cost beacon designed to track pallets, cargo boxes, and other valuable assets.
The datasheet for the device is available in the Useful Materials section.
Go to comparison
Sample order

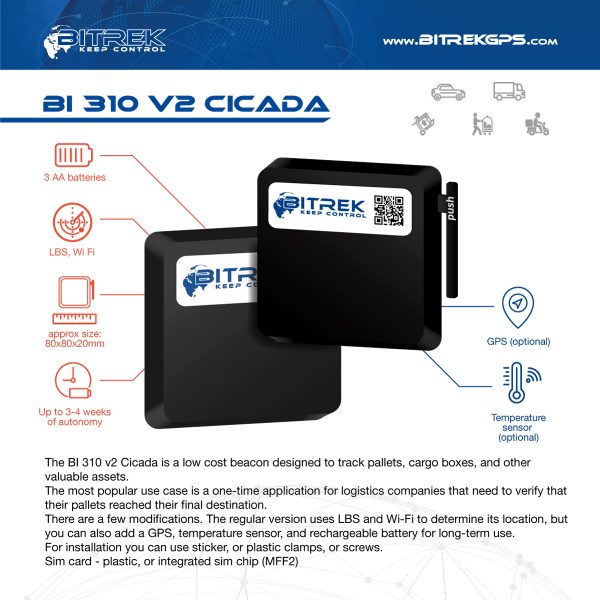

The BI 310 v2 Cicada is a low-cost beacon designed to track pallets, cargo boxes, and other valuable assets.
The most popular use case is a one-time application for logistics companies that need to verify that their pallets reached their final destination.
There are a few modifications. The regular version uses LBS and Wi-Fi to determine its location, but you can also add a GPS, temperature sensor, and rechargeable battery for long-term use.

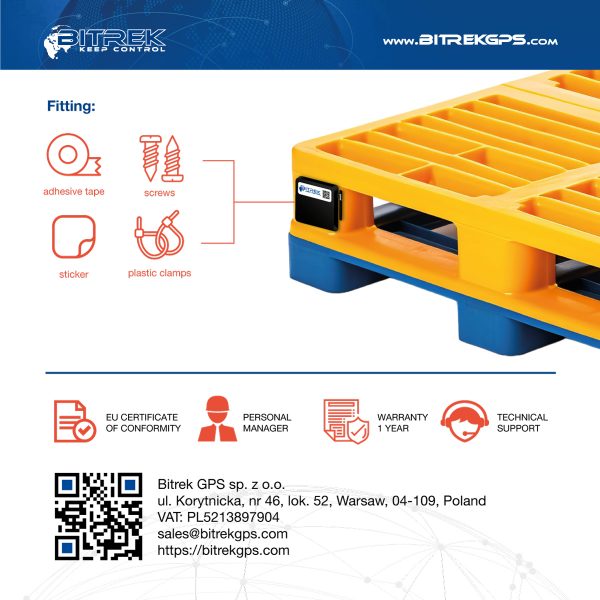

For installation, you can use a sticker, plastic clamps, or screws.
SIM card – plastic, or integrated SIM chip (MFF2)
Wireless capabilities | |
Method | LBS / Wi-Fi |
Data transmission | GPRS, SMS |
Data processing | GPRS, SMS |
Tecnology bands | 2G; 4G |
Frequences (2G) | GSM 850/900/1800/1900 MHz |
GSM-900 Transmitter power | 888-915 MHz/933-960 MHz Up to 2 W |
GSM-1800 Transmitter power | 1710-1785 MHz/1805-1880 MHz Up to 1 W |
GPS modem | Optional |
Wi-Fi | Optional |
GPS / GSM antennas | Internal |
Onboard battery | Three AA batteries (Up to 4 weeks) |
Physical parameters | |
Case | 80 х 80 х 20 mm / 3.15″ × 3.15″ × 0.79″ |
Case material | Plastic ABS UL94 V0 |
Weight gross | 100 g / 0.22 LBS weight |
Case protection | IP65 |
Operational temperature range | -10°С tо +50°С |
Operational humidity range | 80±15% |
