Light CAN reader

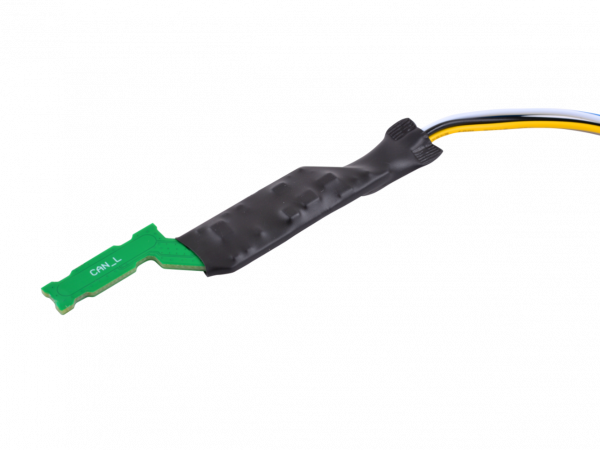

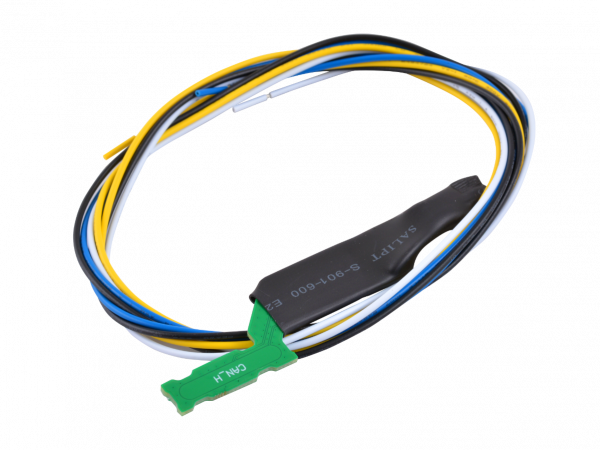

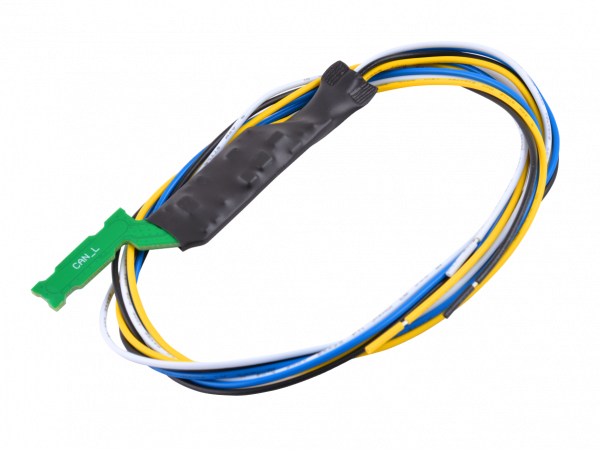

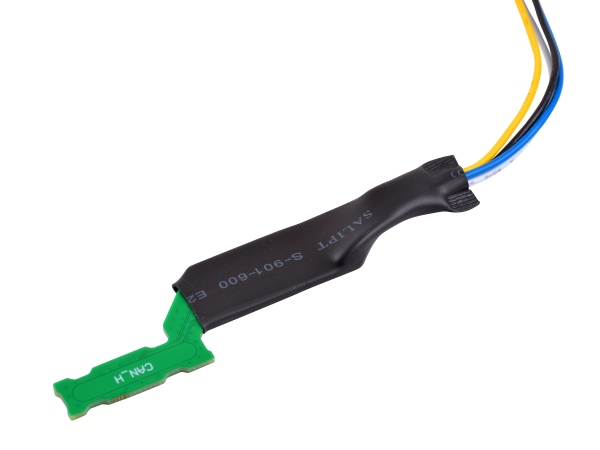

The CANReader is a lightweight reader designed for contactless reading of data from a vehicle’s CAN bus and for generating an output signal identical to the one it reads.
No cutting wires required, keeps your warranty safe!
The connection is made without directly cutting into the CAN bus signal lines or violating the insulation integrity of the vehicle’s electrical wires.
Bitrek CANReader operates by reading the electromagnetic field formed around a wire when a signal passes through it.
Go to comparison
Sample order
Bitrek’s contactless CAN reader is primarily used for new commercial vehicles, such as cars, vans, trucks, and service vehicles that are under warranty.
- Compact size;
- Easy to install in hard-to-reach places;
- Original car wires are not damaged;
- Supports 11-bit and 29-bit data;
- Works with all Bitrek tracker models.
Note: The complete list of parameters transmitted to the CAN bus of a specific vehicle model is specified in the vehicle manufacturer’s operating documentation.
Power supply voltage (nominal) | 6V / 40V |
Average current consumption (12 V) | 20mAh |
Interface | CAN (FMS) |
Operating temperature | from -30 °C to +80 °C |
Average humidity | 80±15 % |
Atmospheric pressure | 84 kPa - 107 kPa (from 630 to 800 mmHg) |
Net weight | 50g / 0.11 lbs |
