Bitrek CAN reader

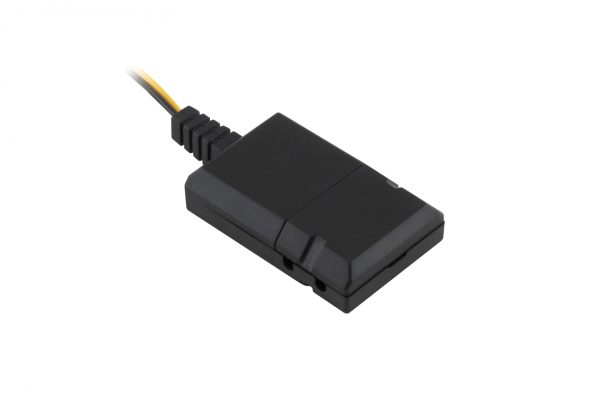

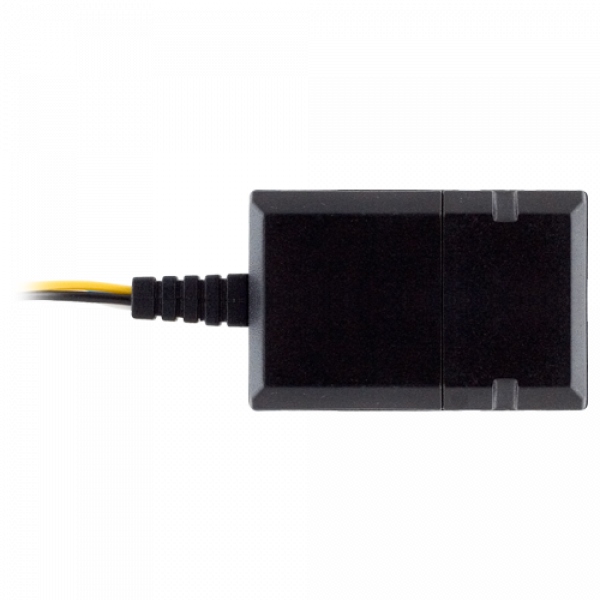

Bitrek’s CAN reader is a contactless sensor with a high sensitivity element inside.

CAN reader was developed for application on the new vehicles, to read the CAN without cutting the wires.

For more information check the product description.

Bitrek’s contactless CAN reader is mainly used for new commercial vehicles, like cars, vans, trucks, and service vehicles covered with the warranty.

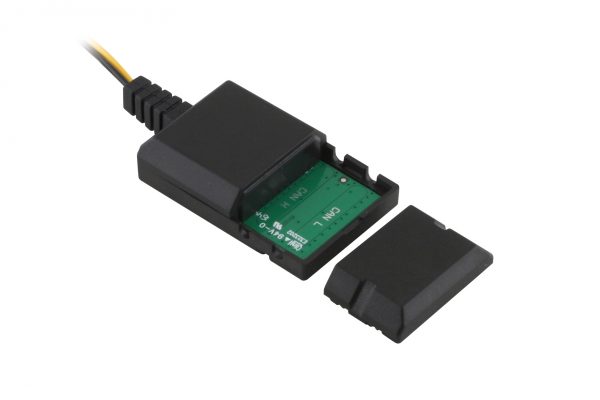

Operational logic: CAN reader has a highly sensitive element inside, and it reads the electromagnetic field generated by a signal when it comes through CAN wires. After that device converts it to the normal CAN signal and sends it to the tracker.

Working with our contactless reader delivers such benefits:

  • easy installation;
  • no impact on the warranty, as all factory wires remain untouched;
  • safe, no impact on the vehicle’s electronics;
  • raising the value of the solution – you provide additional parameters.

The final parameters list can be defined only after real tests on the exact vehicle. The amount and parameters type depends on the vehicle’s firmware, region, and year. However, you can request us with the vehicle list and we will let you know what default programs we have for your cars.

Power supply voltage (nominal)
6V / 36V
Average current consumption (12 V)
20mAh
Interface
CAN (FMS)
Operating temperature
from -30 °C to +80 °C
Average humidity
80±15 %
Atmospheric pressure
84 kPa - 107 kPa (from 630 to 800 mmHg)
Dimensions (L x W x H)
50 × 33 × 15mm / 1.97 x 1.3 x 0.59 inch
Cable length
0.7m
Housing protection class
IP44
Net weight
50g / 0.11 lbs
Data sheet

Download file

2014/53/EU Radio Equipment Directive Homologation certificate

Download file

2014/35/EU Low Voltage Device Homologation certificate

Download file

2014/30/EU Electromagnetic compatibility Homologation certificate

Download file

2011/65/EU RoHS conformity certificate

Download file

ISO certification for production lines

Download file
