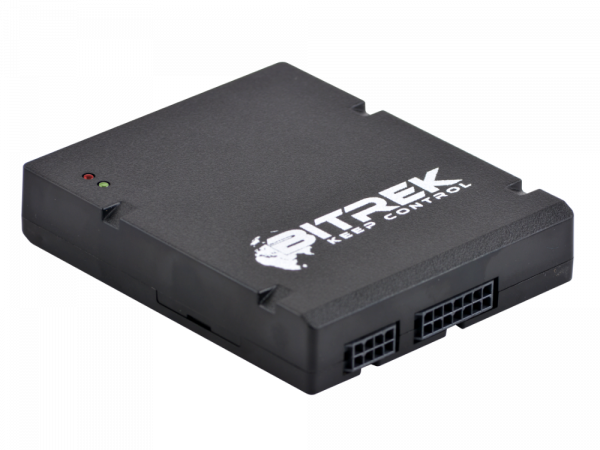

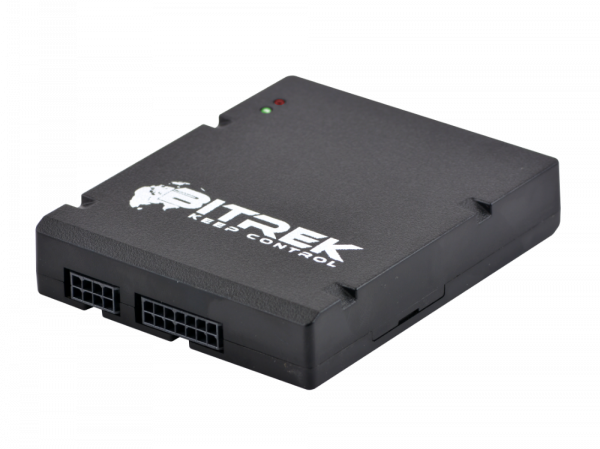

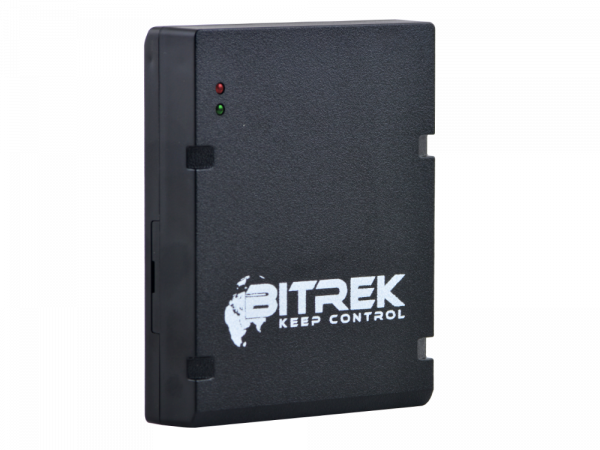

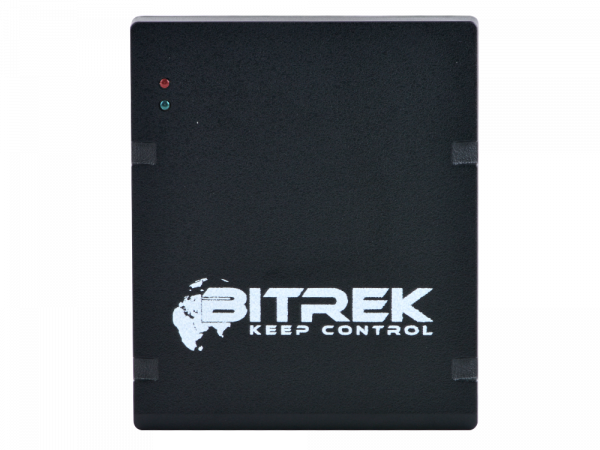

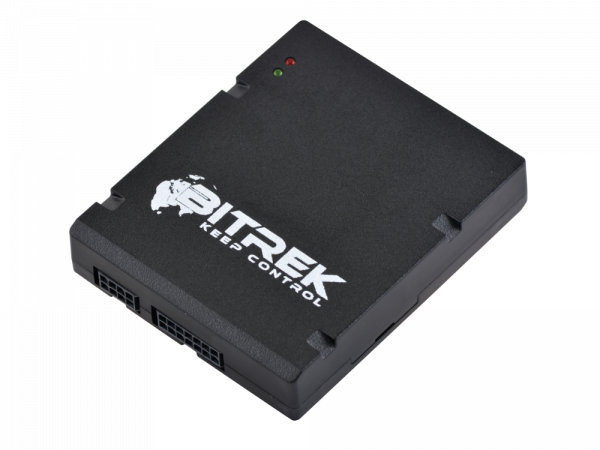

BI 450 TREK

  • GSM 2G/4G (LTE Cat 1) support;
  • Built-in GSM/GPS antennas;
  • Ability to connect up to two CAN buses simultaneously;
  • Support of Tachographs;
  • RS485 (fuel level sensors, RFID readers, Modbus RTU);
  • RS232 (SEO CANLog);
  • 1-Wire (identification, temperature sensors);
  • Support of BLE sensors (fuel level, temperature sensors, etc.);
  • Eco-driving;
  • Lock relay connection;
  • Updated Smart Configurator.

This device is on the TOP of the Bitrek product line. We designed it mainly for the most demanding buyers and the most complex projects.

BI 450 TREK works with Tachographs and supports up to two CAN buses simultaneously: RS485 (fuel level sensors, RFID readers, Modbus RTU), RS232 (SEO CANLog), 1-Wire (Identification, temperature sensors), support for BLE sensors (fuel level sensors, temperature sensors, etc.)
Wireless capabilities
Method
GSM / GPRS / GNSS / BLUETOOTH / LBS
Data transmission
GPRS, SMS
Data processing
GPRS, SMS, Calls
Tecnology bands
2G; 3G; 4G
Frequences (2G)
GSM 850/900/1800/1900 MHz
GSM-900 Transmitter power
888-915 MHz/933-960 MHz Up to 2 W
GSM-1800 Transmitter power
1710-1785 MHz/1805-1880 MHz Up to 1 W
GPS modem
1575,42 MHz (L1)
Bluetooth (optional)
4.0; BLE
GPS / GSM antennas
Internal
Power
Supply voltage
12V / 24V
Current consumption (12V)
60mAh
Voltage range of digital inputs
0V - 40V
Supply voltage range
9V - 36V with premium overvoltage protection
Analog inputs voltage
0V - 27V
Onboard battery
130mAh (Up to 3 hours)
Maxim current of digital outputs
0.5 A
Expandability
Interfaces
CAN; RS 485; RS 232; 1-Wire; J1939; J1708
Accelerometer
Built-in
Digital input with active “0”
2
Digital input with active “1”
1
Digital output
2
Digital inputs
1
Analog inputs
2
Type of digital outputs
Open collector
Internal memory
50 000 records
Physical parameters
Case
95 х 80 х 18 mm
Case material
Plastic ABS UL94 V0
Weight net
75 g / 0.16 lbs
Weight gross
140 g / 0.31 LBS weight
Case protection
IP54
Operational temperature range
-30°С tо +80°С
Operational humidity range
80±15%
